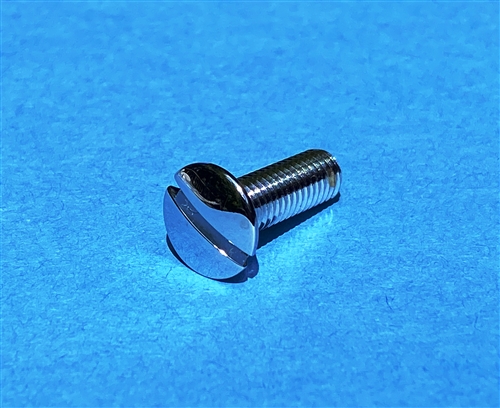

DIN 88 specifies slotted oval head screws, a type of machine screw used in various fastening applications. These screws feature an oval head with a slotted drive, allowing for easy installation and removal with a flathead screwdriver. The oval head design provides a smooth, low-profile appearance that is preferred in some applications.
Key Features of DIN 88 Screws
- Head Type: Oval Head (low, smooth)
- Drive Type: Slotted (compatible with flathead screwdrivers)
- Thread Type: Metric coarse thread
- Material Options: Available in steel (plain, zinc-plated), stainless steel (A2, A4), brass, and other corrosion-resistant materials
- Sizes: M1.6 to M20 (and sometimes larger)
Applications of DIN 88 Screws
DIN 88 screws are used in various applications, including:
- Precision Mechanical Assembly: Applications where a smooth head is desired.
- Optical Devices: Fastening in optical equipment and instruments.
- Electrical Equipment: Securing components in electrical panels and devices.
- Model Making: Used in model building projects.
- Hobbies and Crafts: Fastening in various hobby and craft projects.
Technical Specifications and Dimensions
Below is a standard size chart for DIN 88 slotted oval head screws. It’s crucial to consult the full DIN 88 standard document for the most accurate and up-to-date information, as these are typical values and variations can exist.
| Thread Size (M) | Head Diameter (d1) mm | Head Height (k) mm | Slot Width (n) mm | Slot Depth (t) mm |
|---|---|---|---|---|
| M1.6 | 3.0 | 1.1 | 0.6 | 0.4 |
| M2 | 3.8 | 1.3 | 0.8 | 0.5 |
| M2.5 | 4.5 | 1.7 | 1.0 | 0.6 |
| M3 | 5.5 | 2.1 | 1.2 | 0.7 |
| M4 | 7.0 | 2.9 | 1.6 | 0.9 |
| M5 | 8.5 | 3.6 | 2.0 | 1.2 |
| M6 | 10.0 | 4.2 | 2.5 | 1.4 |
| M8 | 13.0 | 5.7 | 3.0 | 1.8 |
| M10 | 16.0 | 7.2 | 3.5 | 2.2 |
| M12 | 18.0 | 8.4 | 4.0 | 2.5 |
| M16 | 24.0 | 11.4 | 5.0 | 3.2 |
| M20 | 30.0 | 14.4 | 6.0 | 4.0 |
Related Standards
For related information, consider these other fastener standards:
- DIN 85: Slotted Pan Head Screws – A similar slotted drive screw with a rounded pan head.
Conclusion
DIN 88 slotted oval head screws are reliable fasteners used in various applications. Their smooth, low-profile heads make them suitable for situations where an aesthetically pleasing appearance is important. Always consult the official DIN 88 standard document for precise specifications before use.
